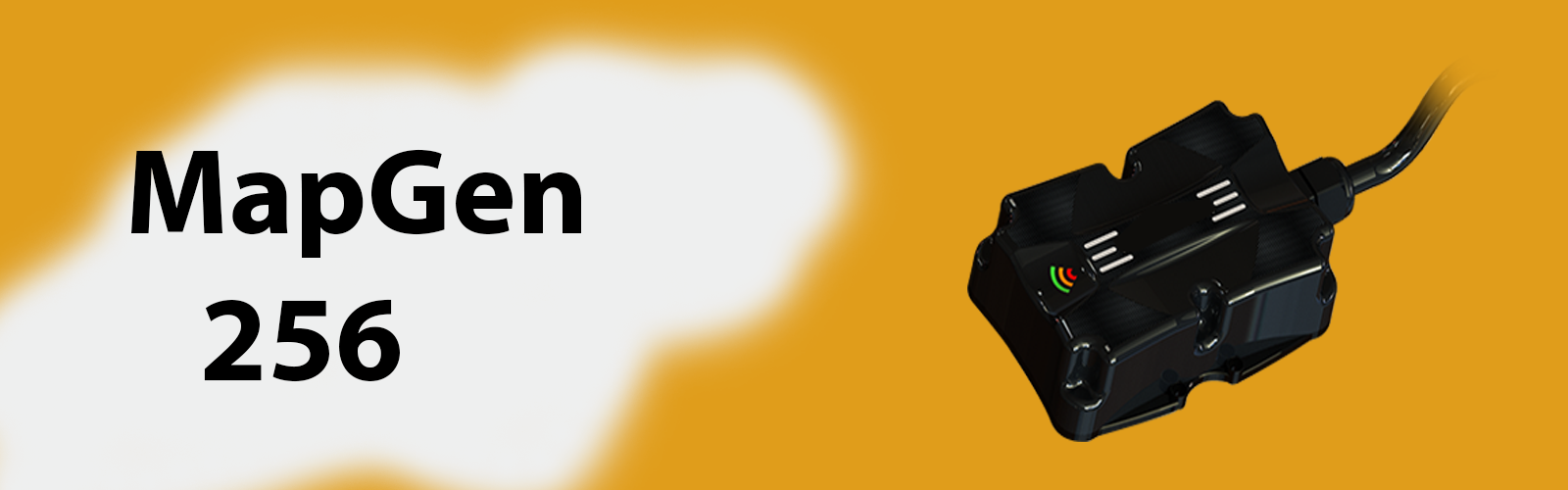

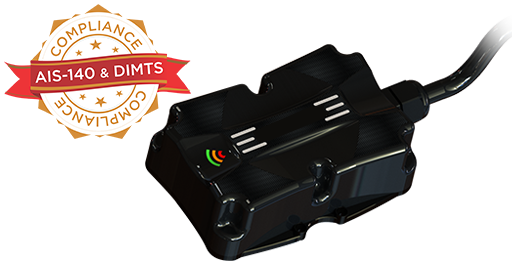

Mapgen 256

Features

  • GPS-SBAS position engine with application processor
  • Quad band GSM / GPRS modem:850 MHz / 900 MHz / 1800 MHz / 1900 MHz)
  • 4 Digital inputs, 2 Digital outputs and 2 analog inputs
  • RS-232 interface for sensor and accessory integration
  • Power supply range of 7V to 32V
  • Sleep mode current less than or equal to 6mA
  • Internal GPS and GSM antenna
  • Location transmission over SMS and GPRS
  • Unit configuration through Serial RS 232 / SMS using software tools
  • Supports HTTP, TCP / IP and UDP / IP protocols
  • Data transmission to 2 IP addresses
  • Memory logs: 50,000 Data records (156 byte per record)
  • Supports Embedded SIM/eUICC
  • Battery backup of 15 Hrs with 10 sec update interval
  • Li-ion Battery, 3.7 V, 2000mAh
  • Firmware upgrade over the air (FOTA) using software tools
  • Password protection and Authentication
  • Device tampering alerts
  • IP67 enclosure
  • In-Built 3-Axis Accelerometer and temperature sensor
  • Compliant to ARAI, C-DAC and DIMTS standards
  • In-built 3-axis Gyroscope
  • 2 Way voice communication with external mic and speaker interface
  • Compliant to ARAI, C-DAC and DIMTS standards
  • AIS 140 compliant product

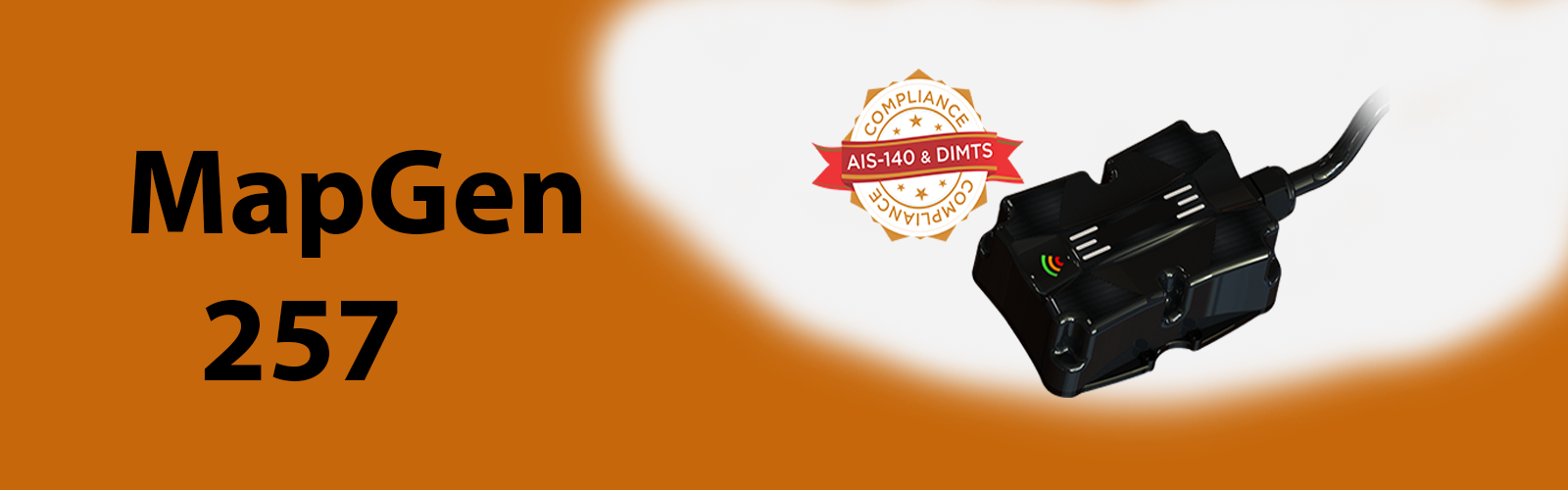

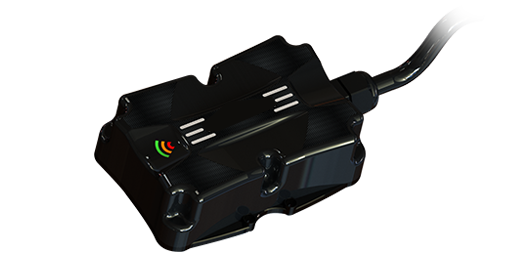

Mapgen 257

Features

  • GPS-SBAS position engine with application processor
  • Quad band GSM / GPRS modem:850 MHz / 900 MHz / 1800 MHz / 1900 MHz)
  • 4 Digital inputs, 2 Digital outputs and 1 analog input
  • RS-232 interface for sensor and accessory integration
  • Power supply range of 7V to 32V
  • Sleep mode current 6mA
  • Internal GPS and GSM antenna
  • Location transmission over SMS and GPRS
  • Unit configuration through Serial RS 232 / SMS using software tools
  • Supports HTTP, TCP / IP and UDP / IP protocols
  • Data transmission to 2 IP addresses
  • Memory logs: 16,000 Data records (128 byte per record)
  • Supports Embedded SIM/eUICC
  • Battery backup of 15 Hrs with 10 sec update interval
  • Li-ion Battery, 3.7 V, 2000mAh
  • Firmware upgrade over the air (FOTA) using software tools
  • Password protection and Authentication
  • Device tampering alerts
  • IP67 enclosure
  • In-Built 3-Axis Accelerometer and temperature sensor
  • Compliant to ARAI, C-DAC and DIMTS standards

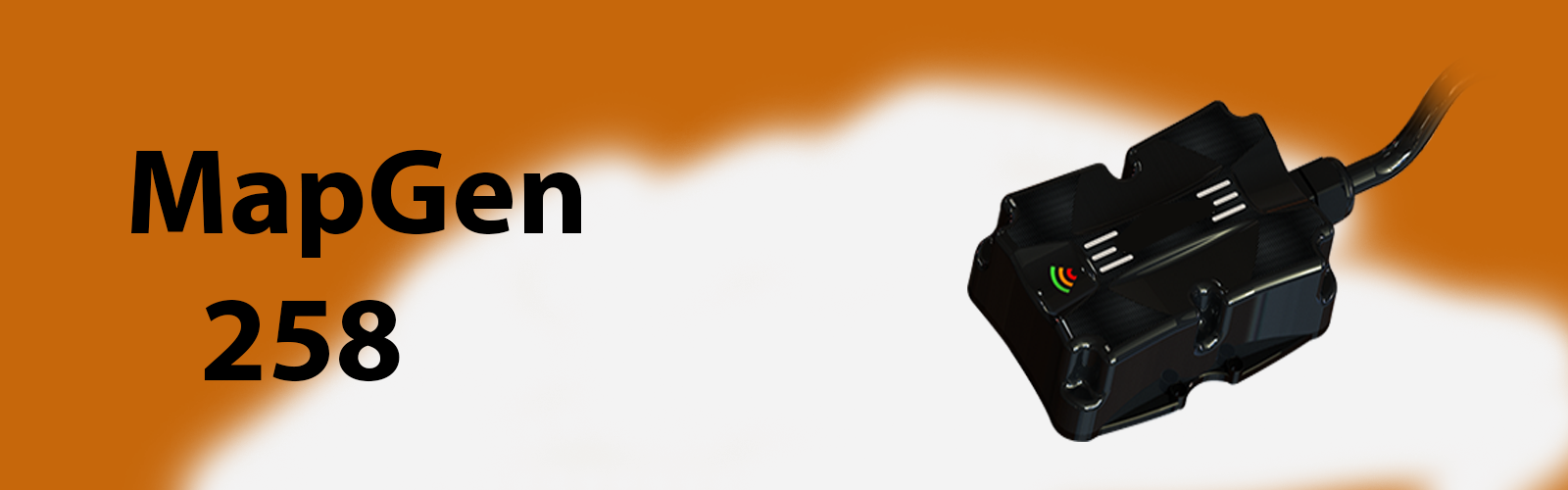

Mapgen 258

  • Mapgen 256
  • Mapgen 257
  • Mapgen 258

Hardware

  • GPS
  • IRNSS/NavIC
  • SBAS/GAGAN
  • GSM/GPRS:Quad Band
  • 2G/NB-IoT
  • LTE/4G
  • Internal Antenna
  • Digital Input in NOs.
  • Digital Output in NOs.
  • Analog Input in NOs.
  • RS-232
  • In-Built Axis accelerometer & temperature sensor
  • In-Built Axis Gyroscope
  • In-Build Memory & No. of Logs
  • Normal SIM
  • Embedded SIM/eUICC
  • In-Built Battery, 3.7 V, 2000mAH
  • 2 Way voice communication (mic & speaker interface)
  • CAN (J1939, OBD II)
  • Video streaming (only Image Capture in 258)
  • LED Indication
  • IP67 enclosure
  • WiFi 802.11b/g/n
  • BLE 4.2(Bluetooth Low Energy)
  • Pulse odometer and Pulse width modulation
  • 1 wire Interface
  • 4
  • 2
  • 1
  • 1
  • 16K
  • 4
  • 2
  • 1
  • 1
  • 50K
  • 6
  • 2
  • 3
  • 2
  • 50K

Software

  • HTTP,TCP/IP/MQTT protocols
  • Data Transition to IP addresses
  • Location Transmission over SMS
  • Firmware upgrade over air (fota) using software tools
  • Password Protection & Authentication
  • Sleep Mode
  • Geo-fencing

Alerts & Protection

  • Device tempering, Emergency/SOS,Low Battery,
  • Mains Connect, Mains Disconnect,Harsh acceleration
  • Harsh Breaking
  • Harsh turn/tilt
  • Shot circuit, Riverse battery and surge protection

Certification

  • ARAI AIS 140
  • C-DAC (KMVD Empanelled/Compliance)
  • DIMTS
  • ORSAC ( Empanelled/Compliance)
